SW14.5TI Hydraulic Flange Spreader Parts

Hydraulic Flange Spreader with integral hydraulic pump capable of generating 15 tons of spreading force

SW14.5TI Flange Spreader - Wedgehead Repair Parts List


ITEM PART No. DESCRIPTION QUANTITY
1
300203-02 JAWS 1set of 2
2
300101-01 WEDGE 1
3
301301-01 GRUB SCREW 1
4
301201-08 ROLL PINS 1 set of 8
5
301102-01 BODY 1
6
300301-01 CONNECTOR/PUSH ROD 1
7
300501-04 SLIDE PINS 1 set of4
8
401801-01 RETAINING SCREW 1
9
308201-01 HANDLE 1
10
312301-01 HANDLE SLEEVE 1
11
310601-01 GREASE NIPPLE 1
12
311601-02 RING 1 set of 2
13
300401-04 GRUB SCREWS 1 set of 4

SW14.5TI

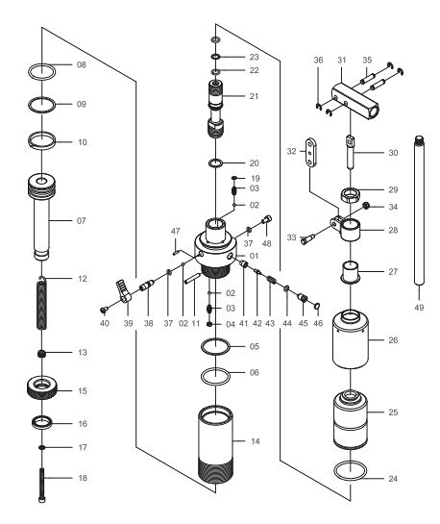

SW14.5TI INTEGRAL HYDRAULIC PUMP/CYLINDER PARTS LIST

Serial no: 7916 onwards

ITEM DESCRIPTION
PART No.
QUANTITY
1 CYLINDER BASE
375101
01 ea
2 STEEL BALL
KIT A
03 ea
3 SPRING
KIT C
02 ea
4 SCREW
KIT C
01 ea
5 BACK-UP RING
KIT C
01 ea
6 O-RING
KIT C
01 ea
7 PISTON ROD
375601
01 ea
8 O-RING
KIT C
01 ea
9 BACK-UP RING
KIT C
01 ea
10 SPLIT RING
KIT C
01 ea
11 PIN
KIT C
01 ea
12 SPRING
376101
01 ea
13 SPRING LOCK
376201
01 ea
14 PULLER BODY
376301
01 ea
15 ROD WIPER
376401
01 ea
16 WIPER
KIT C
01 ea
17 GASKET SEAL
KIT C
01 ea
18 SCREW
376701
01 ea
19 SPRING LOCK
KIT C
01 ea
20 WASHER
KIT A
01 ea
21 PUMP PISTON HOUSING
376901
01 ea
22 O-RING
KIT A
02 ea
23 BACK UP RING
KIT A
01 ea
24 O-RING
KIT C
01 ea
25 RESERVOIR BLADDER
KIT A
01 ea
26 BLADDER HOUSING
372301
01 ea
27 PISTON HOUSING CAP
372401
01 ea
28 SWIVEL CLEVIS
372501
01 ea
29 RETAINING NUT
372601
01 ea
30 PUMP PISTON ROD
KIT A
01 ea
31 HANDLE CLEVIS
377101
01 ea
32 LINK CONNECTOR
373101
01 ea
33 CLEVIS SCREW
373201
01 ea
34 ANTI-LOOSEN NUT
373301
01 ea
35 CLEVIS PIN
372901
02 ea
36 RETAINING RING
373001
04 ea
37 O-RING
KIT A
02 ea
38 RELIEF VALVE SCREW
KIT A
01 ea
39 RELIEF VALVE KNOB
371301
01 ea
40 FIXING SCREW
KIT A
01 ea
41 CONE SEAT
KIT C
01 ea
42 CONE
KIT C
01 ea
43 LONG SEPARATOR SPRING
KIT C
01 ea
44 O-RING
KIT C
01 ea
45 OVERLOAD COVER SCREW
KIT A
01 ea
46 CAP
KIT A
01 ea
47 PIN
370601
01 ea
48 OIL FILL SCREW
KIT A
01 ea
49 HANDLE ROD
373401
01 ea

Serial no: 7916 onwards
Product Code: Kit A 375010-01
Product Code: Kit C 375020-01
Note: Kits A, B and C can be bought together as SW14.5TI Complete Service Kit 375001-01

SW14.5TI

----------------------------------------------------------------------

SW14.5TI INTEGRAL HYDRAULIC PUMP/CYLINDER PARTS LIST

Serial no: up to 7915

ITEM DESCRIPTION
PART No.
QUANTITY
1 PULLER BODY 370101 01 ea
2 PULLER PISTON ROD 370201 01 ea
3 BACK-UP RING KIT B 01 ea
4 U-CUP SEAL KIT B 01 ea
5 RETAINING RING KIT B 01 ea
6 PIN 370601 01 ea
7 COMPRESS SPRING 370701 01 ea
8 ROD WIPER KIT B 01 ea
9 OIL FILL SCREW KIT A 01 ea
10 STEEL BALL KIT A 01 ea
11 O-RING KIT A 02 ea
12 RELIEF VALVE SCREW KIT A 01 ea
13 RELIEF VALVE KNOB 371301 01 ea
14 FIXING SCREW KIT A 01 ea
15 COPPER WASHER KIT A 01 ea
16 SAFETY VALVE KIT B 01 ea
17 PUMP PISTON HOUSING 371701 01 ea
18 O-RING KIT A 02 ea
19 BACK-UP RING KIT A 01 ea
20 RESERVOIR BLADDER KIT A 01 ea
21 O-RING KIT B 01 ea
22 O-RING KIT B 01 ea
23 BLADDER HOUSING 372301 01 ea
24 PISTON HOUSING CAP 372401 01 ea
25 SWIVEL CLEVIS 372501 01 ea
26 RETAINING NUT 372601 01 ea
27 PUMP PISTON ROD KIT A 01 ea
28 HANDLE CLEVIS 372801 01 ea
29 CLEVIS PIN 372901 02 ea
30 RETAINING RING 373001 04 ea
31 LINK CONNECTOR 373101 01 ea
32 CLEVIS SCREW 373201 01 ea
33 ANTI-LOOSEN NUT 373301 01 ea
34 SOLID HANDEL LEVER 373401 01 ea
35 RAM SLEEVE 373501 01 ea
36 SPRING END CAP KIT B 01 ea
37 STEEL BALL KIT B 01 ea
38 SPRING KIT B 01 ea
39 OVERLOAD COVER SCREW KIT A 01 ea
40 CAP KIT A  01 ea
41 O-RING KIT B 01 ea

Serial no: up to 7915
Product Code: Kit A 375010-01
Product Code: Kit B 375015-01

SW14.5TI
