FORMERLY EQUALIZER USA

SECURE GRIP SG4TM FLANGE SPREADER


SG4TM Secure Grip Flange Spreader

The SG4TM is an excellent tool for separating flanges with little or no gap separating the 2 flanges. Also an excellent tool to use when removing blanks, small valves, or instrumentation. Additional colett holders are available to expand the sepating capacity of the tool. For use on flanges with 5/8" or 3/4" bolt holes. Capable of creating 4 ton of separating force.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

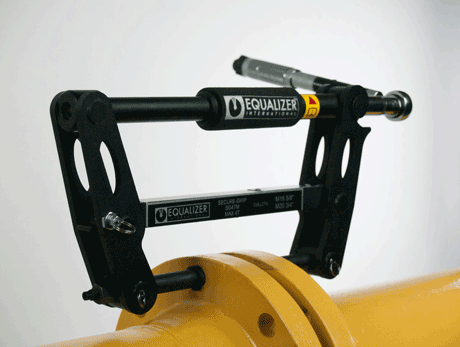

SG4TM Sure Grip Mechanical Flange Spreader

Spreading Force 3.7 T (37 kN)

Years of research and development have produced one of the safest, most innovative flange spreading tools available in the world today – The Secure Grip Flange Spreader.
This ground-breaking tool uses unique patented expanding collet technology to deliver a measurable, controlled force which will separate flanges with little or no access gap.
Virtually universal, the Secure Grip Flange Spreader range covers ANSI, DIN, SPO, ASME, API and BS flanges.

THE SG4TM Flange Spreader KIT

•1 x SG4TM Flange Spreader
•1 x 150mm (5.91") Vernier Calliper
•1 x 3/8" Drive Torque Wrench and Socket
•1 x Safety Block
•2 x M16 (5/8") Collets
•2 x M20 (3/4") Collets
•1 x Instruction Manual
•1 x Robust Carry Case with Protective Foam Inserts

FEATURES AND BENEFITS

Functional

The Secure Grip Flange Spreader can be used during
•commissioning
•construction
•routine maintenance
•shutdowns/outages
•testing
•valve change-outs
•subsea work

Special Features

•unique expanding collet technology
•little or no access gap required
•secure bolt-hole locking mechanism
•flange spreading force up to 3.7 T (37 kN)

Operating Benefits

•unique technology makes the Sure Grip spreader arguably the safest flange spreader available in the world today
•time-saving, simple operation
•measurable, controlled flange spreading force
•virtually universal, the Sure GripFlange Spreader range covers ANSI, DIN, SPO, ASME, API and BS flanges
•portable
Customers buy flange spreaders, flange alignment tools, and other flange maintenance tools from us to get the job done safely, with improved productivity.
