FORMERLY EQUALIZER USA

SECURE GRIP SG11TM FLANGE SPREADER


SG11TM Secure Grip Flange Spreader

The SG11TM is an excellent tool for separating flanges with little or no gap separating the 2 flanges. Also an excellent tool to use when removing blanks, small valves, or instrumentation. Additional colett holders are available to expand the sepating capacity of the tool. For use on flanges with 1-1/8" , 1-1/4" , 1-3/8" bolt holes. Capable of creating 11 ton of separating force.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

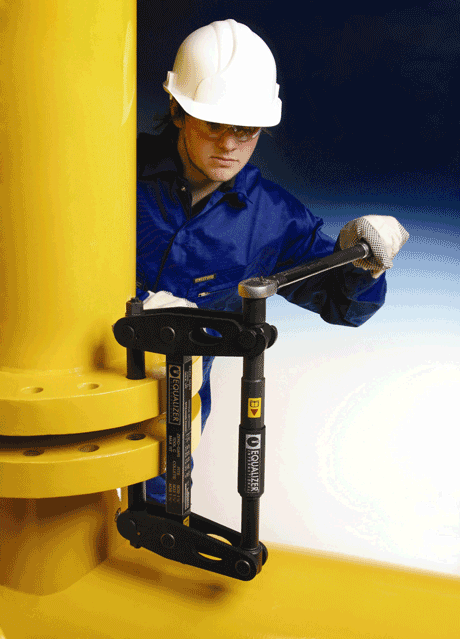

SG11TM Secure Grip Mechanical Flange Spreader

11 Ton Spreading of Force

Years of research and development have produced one of the safest, most innovative flange spreading tools available in the world today – The Secure Grip Flange Spreader.
This ground-breaking tool uses unique patented expanding collet technology to deliver a measurable, controlled force which will separate flanges with little or no access gap.
Virtually universal, the Secure Grip Flange Spreader range covers ANSI, DIN, SPO, ASME, API and BS flanges.

THE SG11TM Flange Spreader KIT

  • 1 x SG11TM Flange Spreader Tool
  • 1 x 150mm (5.91") Vernier Calliper
  • 1 x 3/8" Drive Torque Wrench and Socket
  • 1 x Safety Block
  • 2 x M30 (1-1/8") Collets
  • 2 x M33 (1-1/4") Collets
  • 2 x M36 (1-3/8") Collets
  • 1 x Instruction Manual
  • 1 x Robust Carry Case with Protective Foam Inserts

FEATURES AND BENEFITS

Functional

The Secure-Grip Flange Spreader can be used during

  • commissioning
  • construction
  • routine maintenance
  • shutdowns/outages
  • testing
  • valve change-outs
  • subsea work

Special Features

  • unique expanding collet technology
  • little or no access gap required
  • secure bolt-hole locking mechanism
  • flange spreading force up to 11 Ton

Operating Benefits

  • unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
  • time-saving, simple operation
  • measurable, controlled flange spreading force
  • virtually universal, the Secure-Grip Flange Spreader range covers ANSI, DIN, SPO, ASME, API and BS flanges
  • portable
Customers buy flange spreaders, flange alignment tools, and other maintenance products from us to get the job done safely, with improved productivity.
