FA4TM Mechanical Flange Alignment Tool


The FA4Tm Flange Aligning Tool is a powerful tool designed to be a safe alternative to traditional flange aligning practices.



Fixed Flange & Rotational Aligning Tool

FA4TM mechanical flange alignment tool offers a simple, precise, solution to linear or rotational misalignment on large diameter flanges. A great tool to line up flanges prior to bolt up or when removing bolts from a flange. 4 Ton of push/pull power at the precise point of where it is needed.
Requires a minimum bolt hole size of 1 inch or larger.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player


All to often when performing maintenance on medium to large size flanges, misalignment has been corrected using chain-falls, come-alongs, pulleys, alignment pins, along with other types of rigging equipment. All to often these methods are complex, labor intensive, risky, hard to plan for and execute.
Attempting to line up flanges without using the proper tools is hazardous and time consuming.
UNSAFE AND NPRODUCTIVE FLANGE ALIGNMENT

Hazardous and unsafe flange alignment practices



SAFE EASY AND COST EFFECTIVE A safe mothod of aligning flanges that will improve safety and productivity

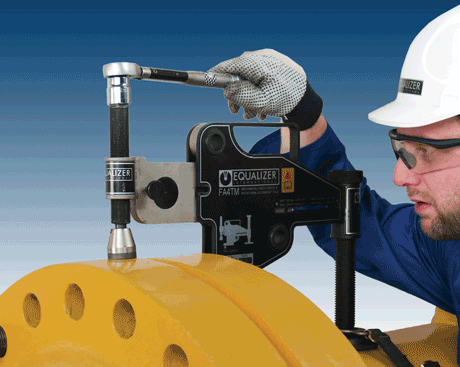

The FA4TM Flange Alignment tool can be used to rectify both Fixed & Rotational Misalignment.  Developed as a safe, simple and cost-effective solution to flange misalignment, this Mechanical Flange Alignment Tool enhances both safety and productivity by dispensing with the need for costly cranes, tirfors, slings and hooks. Designed for mid range flanges, the mechanical flange alignment tool offers a simple solution to rectify linear or rotational misalignment. Please note that the FA4TM replaces the FA3TM flange alignment tool and produces 1 additional ton of aligning capacity with the same or a slightly smaller footprint.

THE FA4TM Flange Aligning KIT

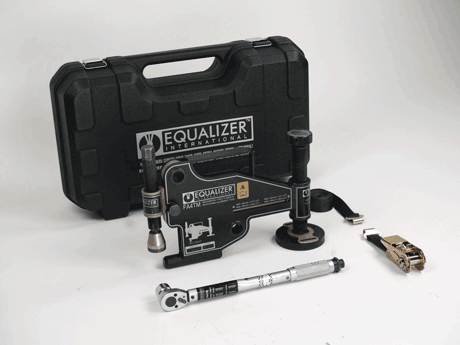

The FA4TM Flange Alinment Tool Kit includes tool, torque wrench with socket, carry case, and strap.
  • 1 x FA4TM Flange Alignment Tool
  • 1 x 50 ft/lbs (67.8 Nm) Torque Wrench with 22 mm Socket
  • 1 x Ratchet Strap
  • 1 x Instruction Manual
  • 1 x Reinforced Plastic Case
  • Gross Kit Weght 29 lbs

Product Code: FA4TMSTD

  • 1 x FA4TM Flange Alignment Tool
  • 1 x 10,000 psi (700 bar) Hydraulic Cylinder
  • 1 x 10,000 psi (700 bar) Hydraulic Hose, 2 m (78.75")
  • 1 x 10,000 psi (700 bar) HP350S Sealed Hand Pump with Gauge
  • 1 x Ratchet Strap
  • 1 x Instruction Manual
  • 1 x Reinforced Plastic Case
  • Gross Kit Weight 58.5 lbs

Product Code: FA4TMSTD

FEATURES AND BENEFITS


Functional
The FA4TM Flange Alignment Tool can be used during

  • commissioning
  • construction
  • routine maintenance
  • shutdowns/outages
  • testing
  • valve change-outs

Special Features

  • rectifies linear or rotational misalignment
  • designed for medium to large diameter medium to high pressure flanges
  • operates on most pipe configurations
  • use on horizontal and vertical flanges including ANSI, API, BS, DIN & SPO
  • flange aligning force = 4 T
  • suitable for offshore and onshore applications
  • precise operation
  • robust
  • portable

Operating Benefits

  • saves time
  • saves cost
  • labour saving – allows for continuity of work
  • safe operation
  • ideal for remote locations or confined areas
  • dispenses with need for cranes, tirfors, hooks, come-alongs

Customers rely on our innovative pipe flange alignment tools to solve their fixed flange and rotational misalignment problems in  safe, cost effective manner.
