FA1TM Mechanical Flange Alignment Tool

The FA1Tm Flange Aligning Tool is a handheld tool designed to be a safe alternative to traditional flange aligning practices.

Fixed Flange & Rotational Aligning Tool

The FA1TM mechanical flange alignment tool offers a simple, precise, solution to linear or rotational misalignment on small, low pressure flanges. A great little tool to line up flanges prior to bolt up or when removing bolts from a flange. 1 Ton of push/pull power at the precise point of where it is needed.
Requires a minimum bolt hole size of 5/8 inch or larger.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

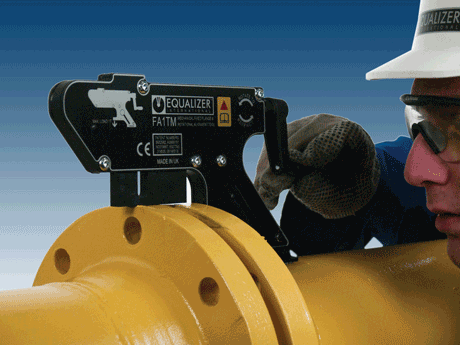

A simple solution to small, low pressure flange misalignment. The FA1TM handheld Alignment Tool is the perfect solution for flange aligning, eliminating the risk of injury due to slippage.


The Kit includes
  • 1 x FA1TM Flange Alignment Tool
  • 1 x Ratchet Strap
  • 1 x Instruction Manual
  • Tool Weight 3.5lbs


The FA1TM Mechanical Fixed Flange & Rotational Alignment Tool can be used during

  • commissioning
  • construction
  • routine maintenance
  • shutdowns/outages
  • testing
  • valve change-outs
Special Features
  • use on virtually all horizontal and vertical flanges including ANSI, API, BS, DIN & SPO
  • operates on most pipe configurations
  • flange aligning force = 1 Ton
  • suitable for offshore and onshore applications
  • robust
  • portable – only 3.5 lbs
Operating Benefits
  • saves time
  • saves cost
  • safer operation than traditional methods
  • precise operation
  • lightweight – ideal for remote locations
Customers rely on our innovative pipe flange alignment tools to solve their fixed flange and rotational misalignment problems in  safe, cost effective manner.
